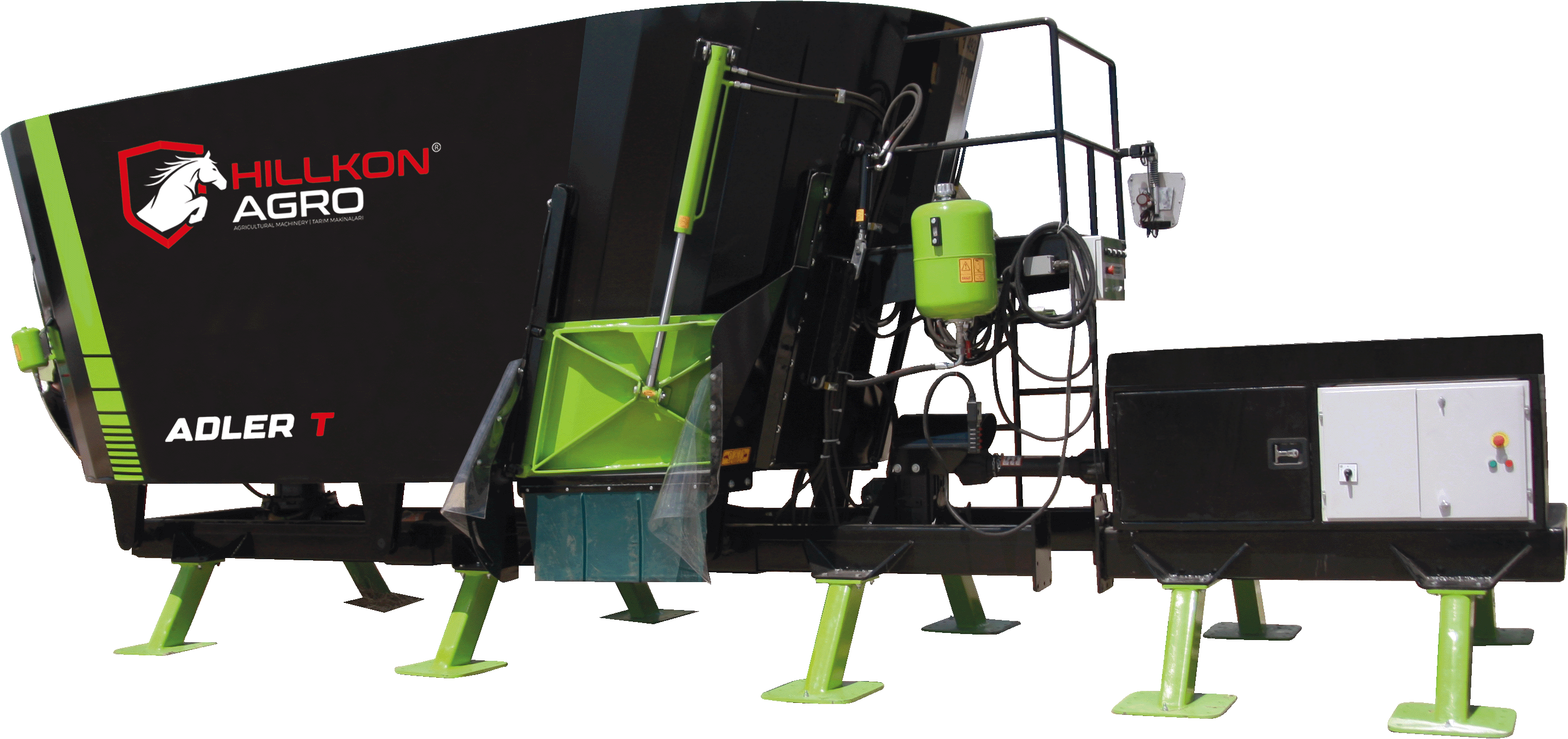

ADLER T - FEED PREPARATION

The feed mixer is designed for grinding and mixing feed mixtures. The vertical auger design handles dense and coarse feed more reliably, thanks to specially designed cutting knives made of hardened steel. The feed components that fall into the feed mixer retain their natural qualities, since they are not kneaded or heated when mixed and crushed. The unloading belt conveyor is located in the side part. At the request of the client, this model is equipped with an electronic weighing system. Robust design, convenient and flexible operation ensures high efficiency and saves time.

Subject to modernization at the request of the client from 20, 40 or more.

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

UNIT

ADLER Т

Volume

m3

20

Type

screw

Double vertical spiral

Width

mm

2430

Length

mm

7500

Height

mm

2800

Weight

kg

6900

Number of screws

pcs

2

Control system



Hydraulic

Power

kW

75

Working method



Electric

Number of crusher blades



2

Number of blades

pcs

18

Weighing system



Available

Transmission with gear



2-stage

Rotation transmission



Gearbox
