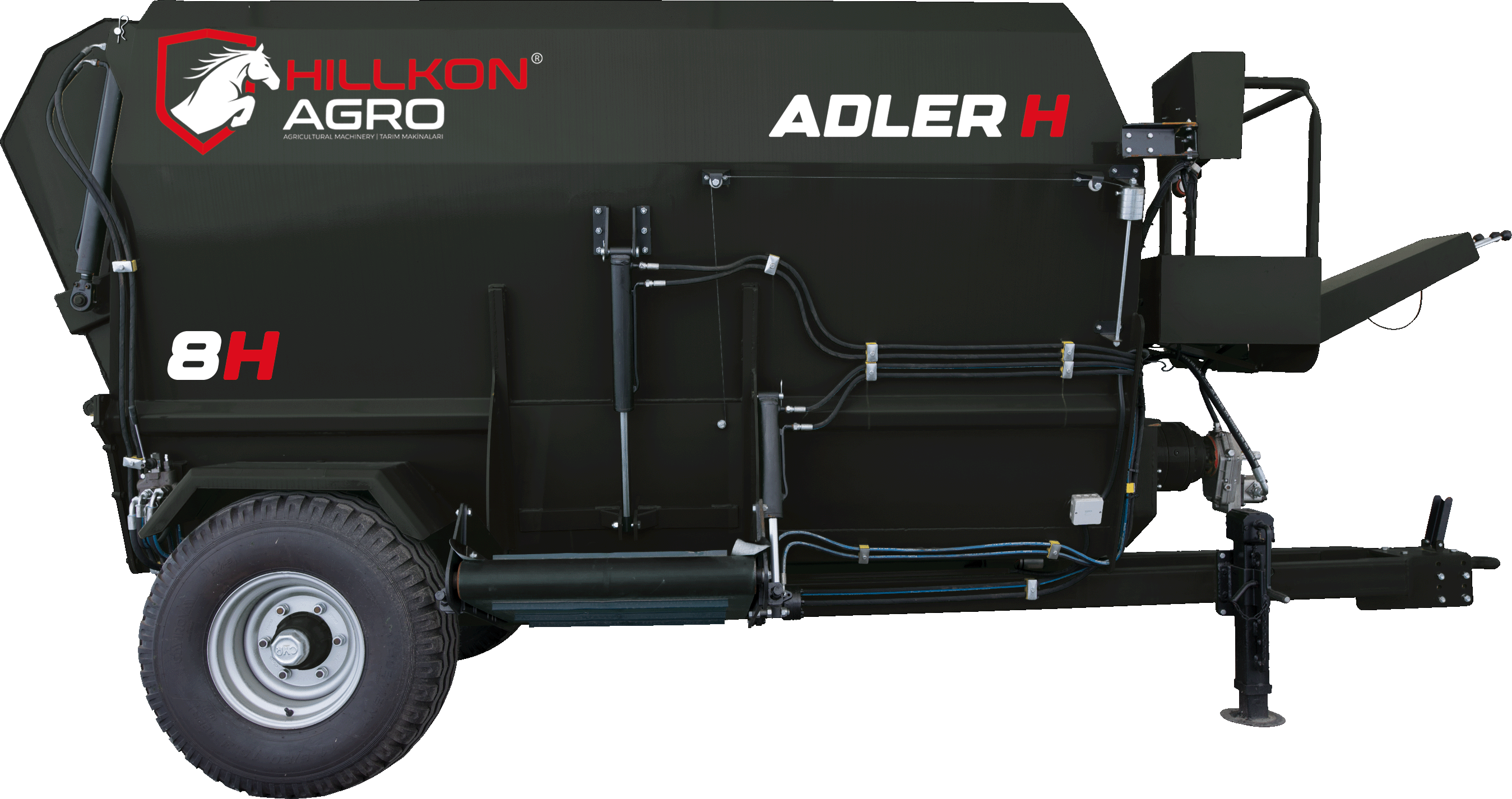

ADLER H - FEED MIXING AND DISPANSERS

Feed dispenser designed for grinding, mixing and distributing feed mixtures. The horizontal auger design is much better at chopping feed, as the chopping occurs as the knives pass through the U-shape, thanks to specially designed cutting knives made of hardened steel. ADLER X6 providing a high degree of feed grinding. The feed components that fall into the feed mixer retain their natural qualities, since they are not kneaded or heated when mixed and crushed. The unloading window, at the request of the client, can be located on the left or right side of the side of the feed dispenser. The feed dispenser is a single-axle trailer that is mounted on tractors. At the request of the client, this model is equipped with an electronic weighing system. The feed mixer is equipped with a pneumatic braking system. Robust design, convenient and flexible operation ensures high efficiency and saves time.

Subject to modernization at the request of the client.

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

UNIT

ADLER Н

ADLER  6Н

ADLER  8Н

Capacity

м3

6

8

Type

screw

Horizontal

Horizontal

Width

mm

2050

2000

Length

mm

5150

5200

Height

mm

2235

2500

Weight

kg

2600

3550

Number of spirals

pcs

1

1

Number of crusher blades



2

2

Wheel sizes

inch

11.5x75х11,3

11.5x75х11,3

PTO

rpm

540 ​​​

540

Number of blades

pcs

108

96

Weighing system



Option

Option

Tractor power

hp

30 / 40

40 / 50
