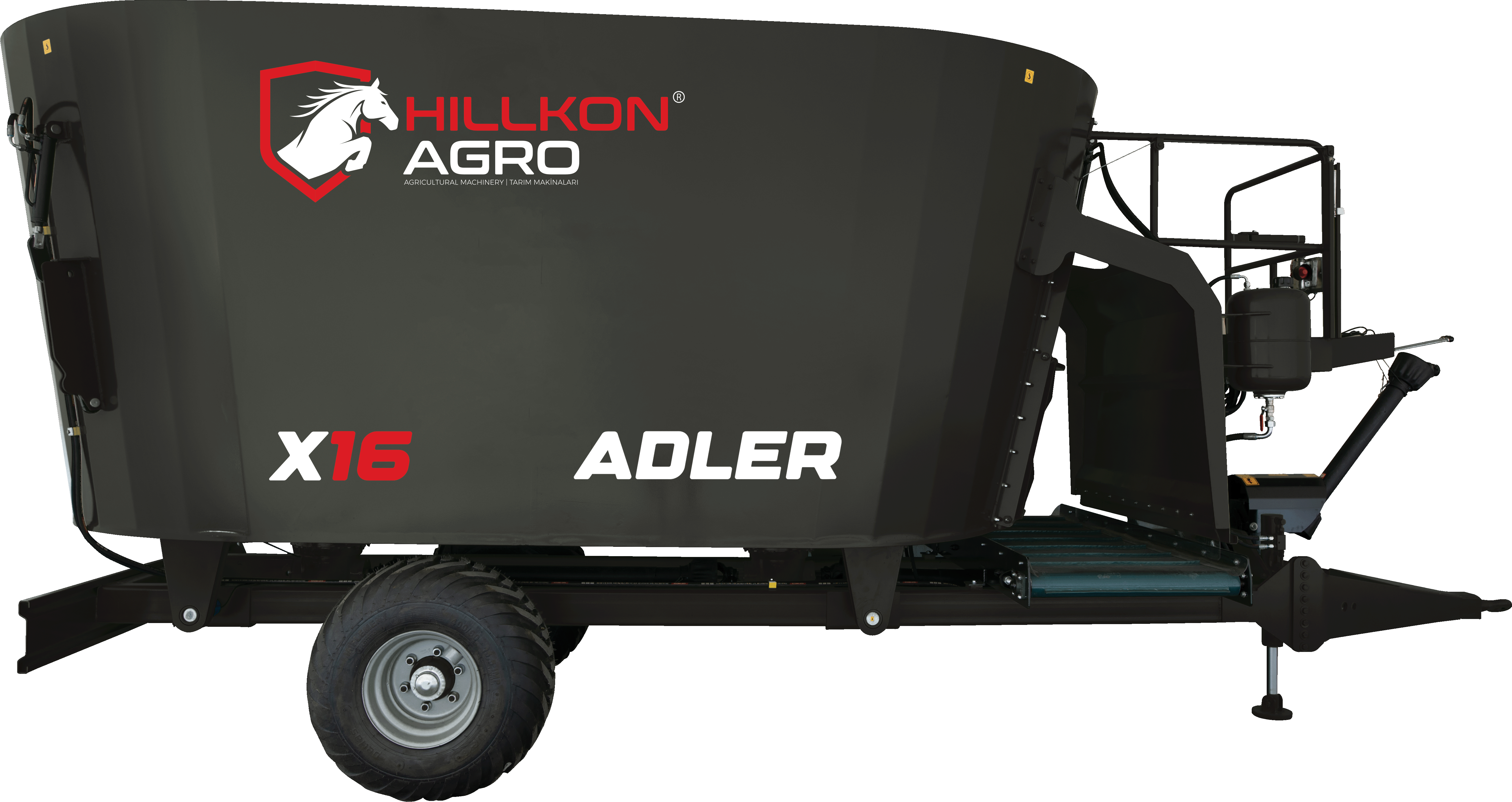

ADLER - FEED MIXING AND DISPANSERS

Feed dispenser designed for grinding, mixing and distributing feed mixtures. The vertical auger design handles dense and coarse feed more reliably, thanks to specially designed cutting knives made of hardened steel. The feed components that fall into the feed mixer retain their natural qualities, since they are not kneaded or heated when mixed and crushed. The unloading belt conveyor is located in the front part of the dispenser, providing the ability to distribute feed from the right or left side. The feed distributor is a two-axle or single-axle trailer that is mounted on tractors. At the request of the client, this model is equipped with an electronic weighing system. The feed mixer is equipped with a pneumatic braking system. Robust design, convenient and flexible operation ensures high efficiency and saves time.

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

UNIT

ADLER  - FEED MIXING AND DISPANSERS

ADLER 8

ADLER 10

ADLER 12

ADLER 14

ADLER 16

ADLER 20

Type

screw

Vertical

Vertical

Vertical

Vertical

Vertical

Double vertical spiral

Capacity

m3

8

10

12

14

16

20

Width

mm

2850

2370

2370

2150

2200

2250

Length

mm

6020

6300

6300

6750

6750

7020

Height

mm

2800

2900

3050

2750

2900

2900

Weight

kg

3200

4100

4200

6900

6900

6900

Number of spirals

pcs

1

1

1

2

2

2

PTO

rpm

540

540

540

540

540

540

Tractor power

hp

65/75

75 / 95

75/95

120

120

120

Wheel sizes

inch

400x60x15.5

400x60x15.5

400x60x15.5

400x60x15.5

400x60x15.5

400x60х15,5

Number of crusher blades



2

2

2

2

2

2

Number of blades

pcs

8

9

9

9

9

9

Weighing system



Option

Option

Option

Option

Option

Option

Unloading system



Conveyor

Conveyor

Conveyor

Conveyor

Conveyor

Conveyor

Loading bucket



Option

Option

Option

Option

Option

Option

Unloading side



Front two-way

Left and right

Left and right

Left and right

Left and right

Left and right

Number of axle



1

1

1

2

2

2

Hydraulic feed system



Available

Available

Available

Available

Available

Available

Self-lubricating system



Available

Available

Available

Available

Available

Available

Lifting leg



Hydraulic

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Circle diameter to helix

mm

1684

2050

2050

2050

2050

2050

Pipe diametr to helix

mm

346

480/255

480/255

480/255

480/255

480/255

Spiral shak

mm

600

360

360

360

360

360

Diametr period

rpm

20,3

20,3

20,3

20,3

20,3

20,3

Transmission with gear



Available

Available

Available

2-stage

2-stage

2-stage
