ARLIN - LIQUID ORGANIC FERTILIZER SPREADERS

The spreader of liquid organic fertilizers is designed for self-loading, transportation and uniform surface application of organic fertilizers into the soil. Liquid fertilizers are recognized as the most effective; nutrient mixtures are in demand in arid areas, where the soil instantly absorbs the liquid introduced into it. The devices are equipped with a volumetric container, which is made of a high-strength metal alloy to give the iron the property of resisting oxidation and corrosion. The ARLIN has a low-slung design, off-road tires and a rugged chassis for use on any terrain. Loading is done by a vacuum system through a filling hose. HILLKON AGRO provides powerful pumps (local and Italian) for rapid suction of suspension and application of fertilizer with a wide spray range. There are indicators of pressure and filling level of the barrel, a high and low pressure valve, as well as protection against overfilling the tank. The work process is controlled from the tractor cabin.

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

UNIT

ARLIN - LIQUID ORGANIC FERTILIZER SPREADERS

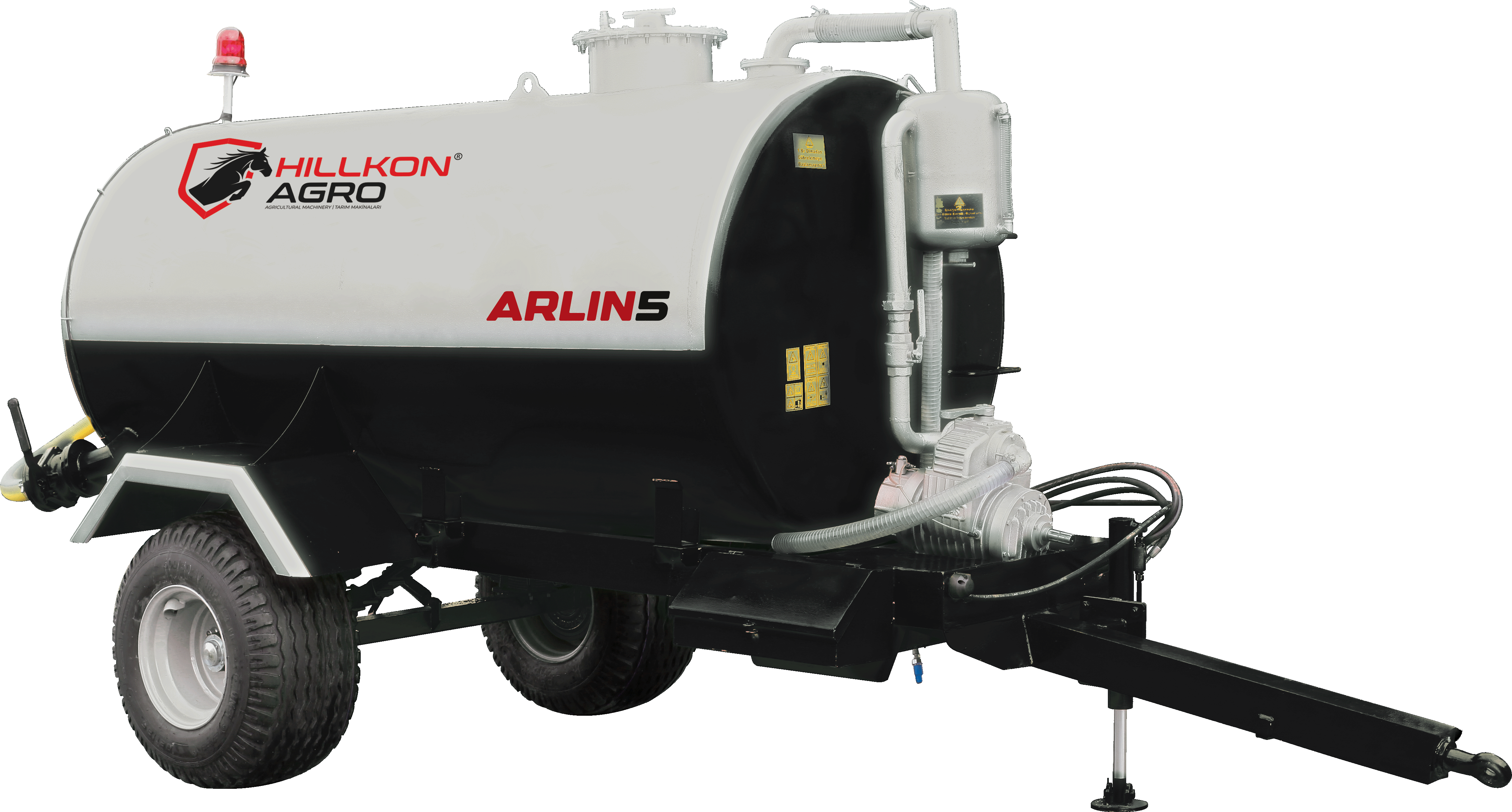

ARLIN 5

ARLIN 10

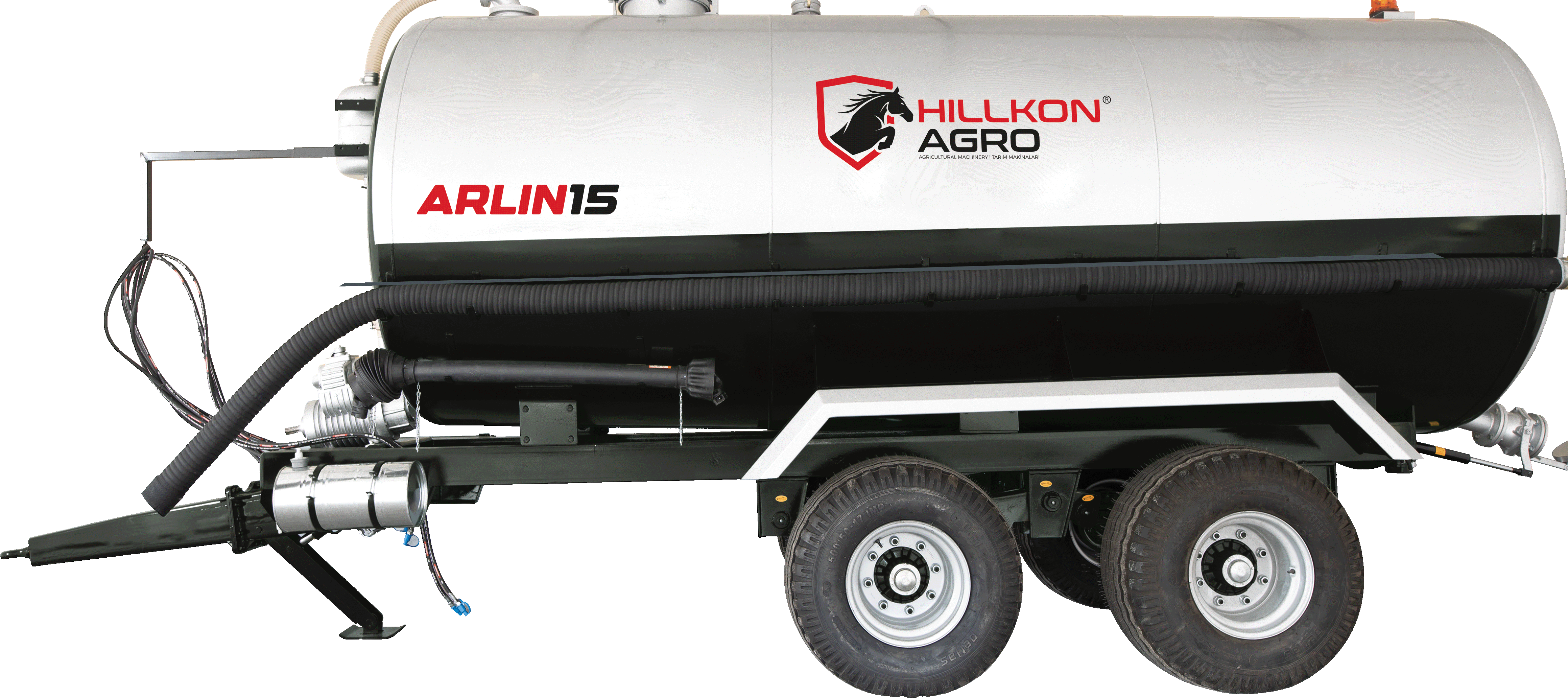

ARLIN 15

ARLIN 20

Capacity

ton

5

10

15

20

Width

mm

2150

2300

2300

2500

Height

mm

2750

2900

3000

3000

Length

mm

6000

7000

7500

8300

Number of axes



1

2

2

2

Vacuum pump



Available

Available

Available

Available

Vacuum pump power



25 BG / 360м3h

25 BG / 360м3h

25 BG / 360м3h

25 BG / 360м3h

Height from ground



1150

1200

1200

1200

Unloading system



Available

Available

Available

Available

Tire size



500х50х17

500х50х17

500х50х17

600х50х22,5

Tank dimensions

mm

1440х3400

1800х4400

1900х4900

2000х6300

Weight

kg

2400

3100

3800

4500

Distance from auger to center of axle

mm

3500

3500

3500

4100

Ground clearance

mm

1800

1800

1800

1800

Soil interval

mm

360

365

365

365

Characteristics of repeat spreaders

Type



Impact plate

Plate diameter

pcs

100

Turnover

rpm

540

Equipment for applying fertilizer to the soil

mm

Option

Dispenser for spreading fertilizer from above



Option

Tractor power

hp

50-60

65-75

90-110

120-150
